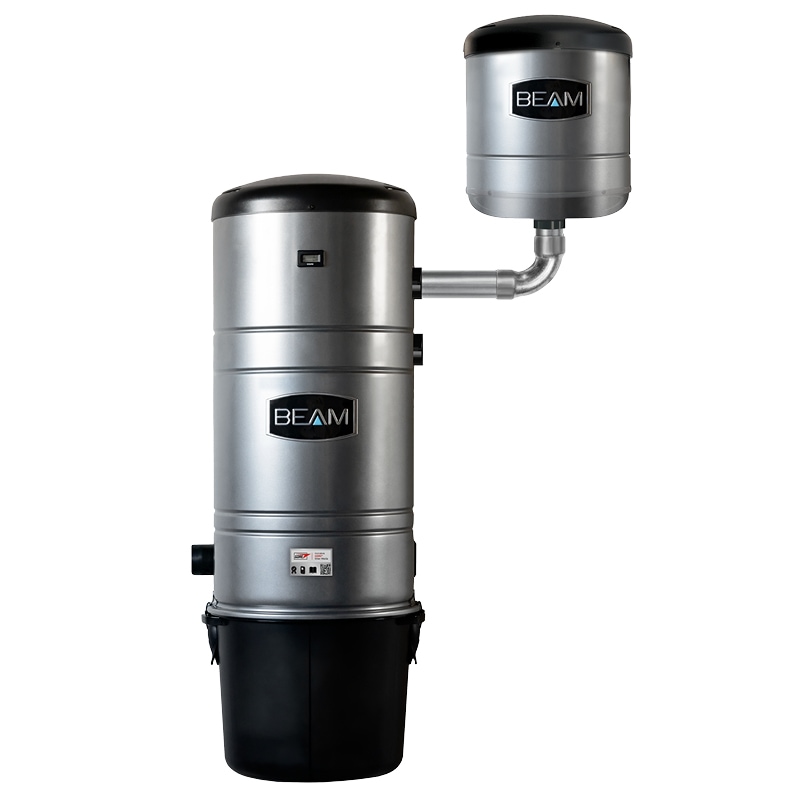

Central vacuum 4500 – Hybrid – 1354 AW
Model name : 4500
Equipped with two separate motors that can be connected in series or parallel as needed, this central vacuum delivers outstanding performance. It is perfectly suited for cleaning large areas, especially when used with a long hose and in installations with an extensive duct network and multiple inlets, whether traditional or Retraflex®.
This model cannot be installed in an enclosed space. For specific installation details, please refer to the user manual.
Recommandations :
- Type of residence : large houses
- Approximate area : > 200 m²
Others informations :
- Owner’s manual
- Warranty : 7 years or 750h (parts)*
*International warranty coverage is generally administered by the local distributor or importer. Warranty terms, conditions and coverage may vary by country and may differ from the manufacturer’s standard warranty. Please contact your local authorized distributor for complete warranty details.
Specifications for parallel use :
- Air Flow : 273.4 PCM / CFM
- Water lift (H2O) : 3790 mm
- Sound level : 70 dB
- Height : 16.9″ / 43 cm
- Diameter : 11.9 / 30.2 cm
Power
Air Flow136.7 CFM
AirWatts1,354 AW
Maximum Amps14.6 A
Motor Type2 + 2 stage | 2 motor | 168 mm
Sound Level72 dBA
Voltage Rating240 V
Vacuum Specifications
Bag capacity6.9 gal | 26 L
Canister capacity5.5 gal | 20.9 L
Filtration TypeHybrid Gore
Water Lift Suction6,452 mm of H2O
Weight & Dimensions
Diameter13.4 in | 34 cm
Height42.1 in | 107 cm / 16.9 in | 43 cm
Weight31 lbs
