Alliance Series 700TCN01A Central Vacuum
HEPA air filtration makes this our top-of-the-line central vacuum system. Intelligently designed to combine ultimate cleaning power with convenience and Interactive Smart Screen technology.
Advanced Fingertip Controls electronically adjust suction and turns the entire system on/off with the push of a button. The power unit communicates with the hose handle to keep you informed about the level of performance of the system while vacuuming.
The exclusive BEAM Self-Cleaning Filter with GORE-TEX filters out 98%* of particles such as dust, pollen, bacteria, and pet dander. The filter protects the HE motor for prolonged life with no loss of performance as the dirt bucket fills up.

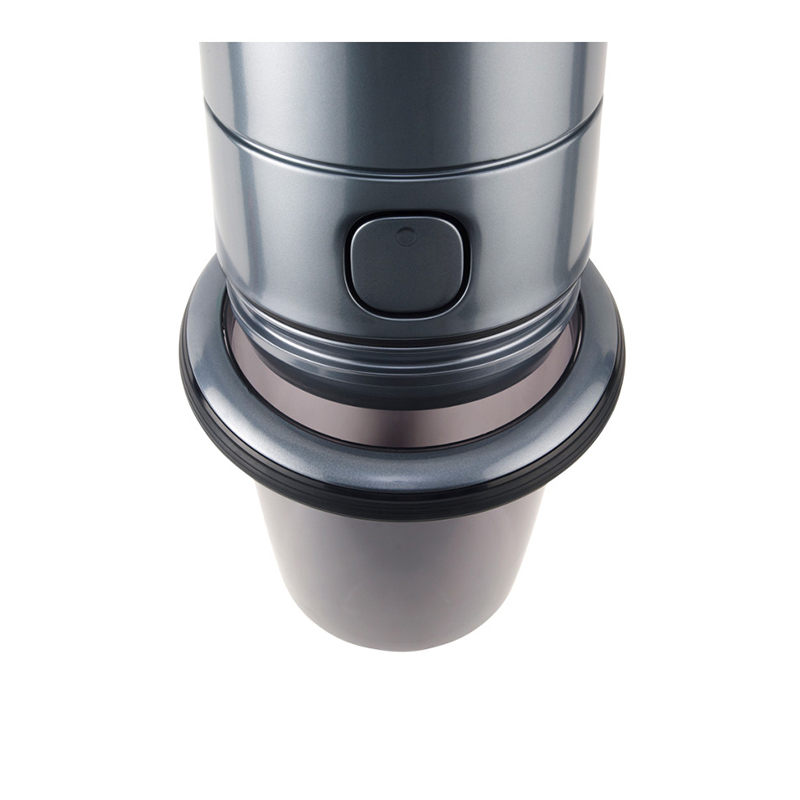

Press & Release Bucket
The BEAM Press & Release Bucket is quick and easy to empty. Simply press down on any two points around the ring and pull down to empty the bucket. The bucket is easily snapped back into place with one hand. Translucent bucket to easily see contents.
Minimizing Sound Levels
BEAM’s Patented Sound Package contains the lid insulation around motor compartment and muffler. Minimizing sound levels.
HE Allergen Filtration
The BEAM Alliance HE Allergen Filter traps particles including allergens, pollen, pet dander and dust mites debris and removes them from your living spaces. Helping you achieve a healthier home environment for your family.
Integrated Quick Clean Utility Valve
Opens easily with the touch of a finger. The powered Quick Clean Valve lets you turn on the system from the hose handle and is great for quick clean-ups around the power unit without having to install additional inlet valves.
BEAM Alliance Smart Screens
- The BEAM Alliance monitoring system with the unique 360° LED light ring, provides continuous communication to the hose handle displaying key system performance and operational elements.
- The Intelligent Smart Screen (B) features a motion sensored backlit ring system-on indicator, hose linked icon, empty bucket icon, and motor fault icon.
- The Advanced Smart Screen (C) features a motion sensored backlit ring system-on indicator hose linked icon empty bucket icon and motor fault icon. Plus the addition of performance bars motor speed indicator clock and buttons for easy navigation.
Air Flow125 CFM
Maximum Amps12.5 A
Sound Level80 dBA
Voltage Rating120 V
Approximate Coverage Area10,000 sq. ft.930.0 m²
Dust Capacity4 gal.15.1 litres
Permanent Filter TypeSelf-Cleaning filter with Gore®
Warranty*15 years / 1 year labour
Water Lift Suction122 '' of H2O
Weight & Dimensions
Diameter15 ''38.1 cm
Height42.5 ''108.0 cm
